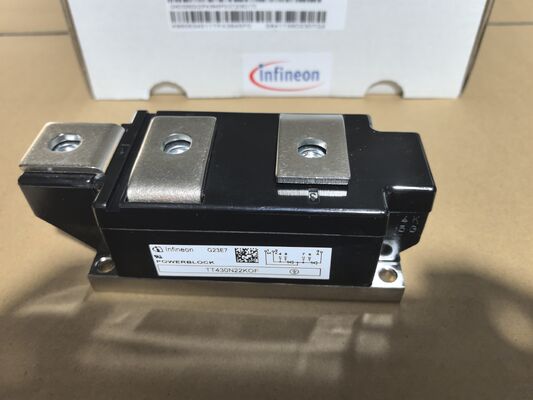

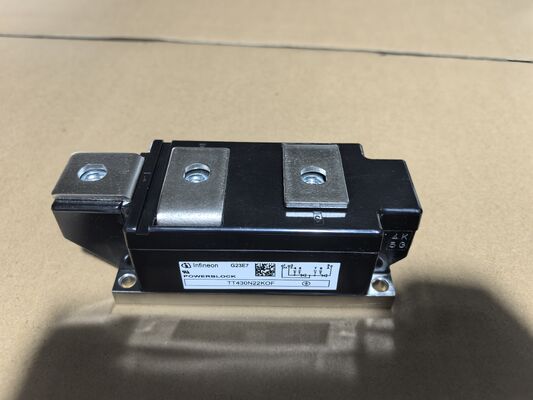

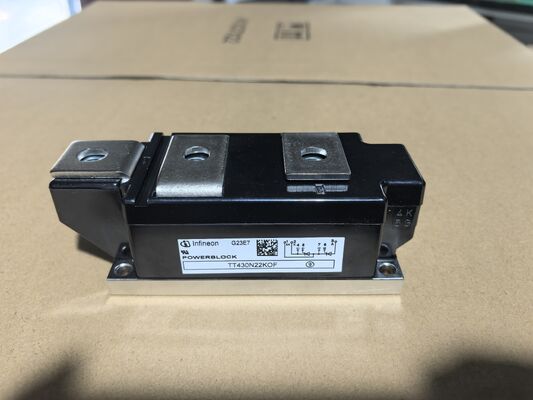

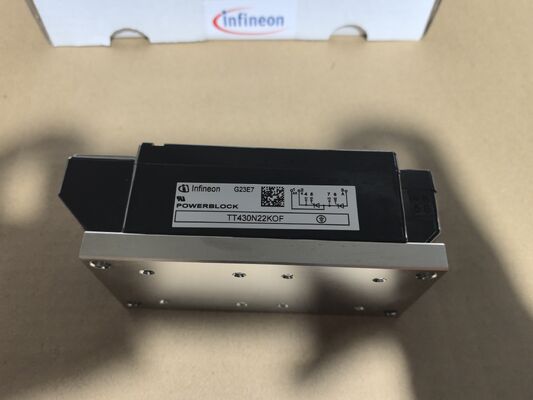

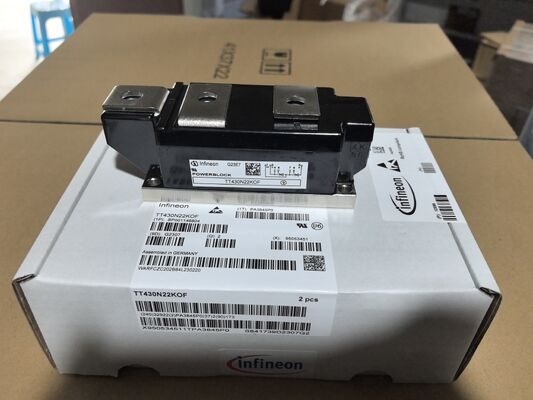

TT430N22KOFXPSA1 2200V 430A HiPak Module Low Vce(sat) High Short Circuit Ruggedness Low Switching Loss Low Inductance Press-Fit Technology For High Power Converters and Rail Traction

TT430N22KOFXPSA1 2200V 430A HiPak Module Low Vce(sat) High Short Circuit Ruggedness Low Switching Loss Low Inductance Press-Fit Technology For High Power Converters and Rail Traction

Features

Pressure contact technology for high reliability

Advanced Medium Power Technology (AMPT)

Industrial standard package

Electrically insulated base plate

Option: Pre-applied thermal interface material (TlM)

Applications

Soft starter

Rectifier for drives applications

Crowbar applications

Power controllers

Rectifiers for UBS

Battery chargers

Static switches

Bypass swich

Description

The ST330C16C0 is a high-voltage, high-current half-bridge IGBT module engineered for demanding industrial power conversion systems. It features a robust 1600V blocking voltage and a 330A current rating, making it suitable for applications requiring high power handling under elevated voltage conditions. The module utilizes advanced IGBT and diode chips to achieve a low collector-emitter saturation voltage (Vce(sat)) for efficient power conduction and optimized switching performance to control losses. It is designed for maximum reliability, offering high short-circuit ruggedness, an integrated NTC thermistor for accurate thermal monitoring, and a robust package construction to withstand the rigors of industrial environments.

INFORMATION

Drawing
