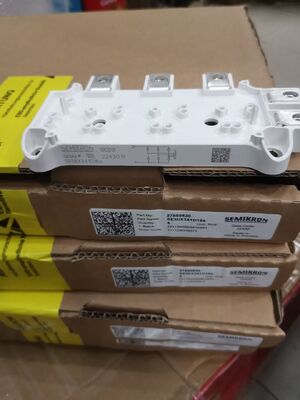

SEMIX341D16S 1600V 450A IGBT Half-Bridge Module Low Vce(sat) Fast Switching Soft Recovery Diode High Temp 175°C Low Loss Industrial Grade For UPS and Solar Inverters
Features
-
1600V / 450A High-Power Rating
-
Half-Bridge IGBT Topology
-
Advanced IGBT Chip with Low Vce(sat)
-
Fast Soft-Recovery Freewheeling Diode
-
Low Switching and Conduction Losses
-
High Junction Temperature Capability (Tvjop up to 175°C)
-
Low Thermal Impedance Baseplate
-
Industrial Grade Robustness and Reliability
Applications
-
High-Power Uninterruptible Power Supplies (UPS): Three-phase systems for data centers and industrial facilities.
-
Solar Inverters: Central and string inverters for utility-scale photovoltaic (PV) farms.
-
Industrial Motor Drives: High-power AC drives for pumps, fans, and compressors.
-
Power Quality Systems: Such as active power filters (APF) and static VAR generators (SVG).
-
Welding Equipment: High-current power supplies.
Description
The SEMIX341D16S is a robust industrial-grade IGBT half-bridge power module designed for high-power, high-voltage conversion systems. It delivers a high-performance rating of 1600V collector-emitter voltage and 450A continuous collector current. The module utilizes advanced IGBT chips with low saturation voltage (Vce(sat)) to minimize conduction losses, and is paired with fast soft-recovery freewheeling diodes that reduce switching losses and electromagnetic interference (EMI). Its high-temperature capability (Tvjop typically 175°C) and low thermal resistance ensure reliable operation under demanding conditions. This combination of high power handling, efficiency, and ruggedness makes it a key component in industrial energy conversion equipment.
INFORMATION
| Current (A) |
348 A
|
| Dimensions (LxWxH) |
138x71x17
|
| Features |
- Terminal height 17 mm
- Chips soldered directly to isolated substrate
- UL recognised file no. E63532
|
| Housing |
SEMiX 13
|
| Legacy part number |
27890830
|
| Product line |
SEMiX
|
| Product Status |
In Production
|
| Surge current (A) |
2000 A
|
| Technology |
Bridge
|
| Topology |
Rectifier
|
| Type |
SEMiX 13
|
| Typical applications |
- Input Bridge Rectifier for AC/DC motor control
- Power supply
|
| Voltage (V) |
1600 V
|
Drawing
