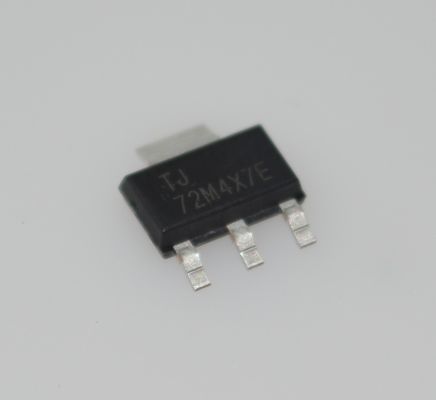

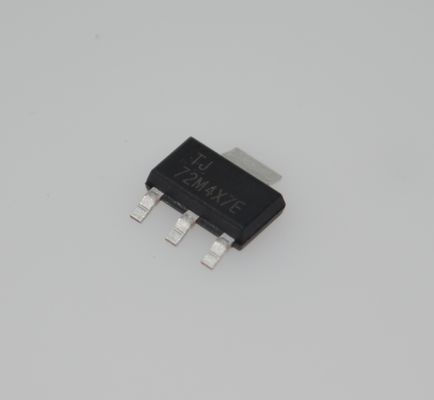

1.2V Low Dropout TLV1117LV33DCYR 3.3V LDO Regulator 800mA Output High PSRR 1% Accuracy Stable with Ceramic Capacitors Enable Pin -40°C to 125°C SOT-223 Package

1.2V Low Dropout TLV1117LV33DCYR 3.3V LDO Regulator 800mA Output High PSRR 1% Accuracy Stable with Ceramic Capacitors Enable Pin -40°C to 125°C SOT-223 Package

Features

• Typical accuracy: 1.5%

• Low IQ: 100 μA (maximum)– 500 times lower than standard 1117 devices

• VIN: 2 V to 5.5 V– Absolute maximum VIN: 6 V

• Stable With 0-mA output current

• Low dropout: 455 mV at 1 A for VOUT = 3.3 V

• High PSRR: 65 dB at 1 kHz

• Minimum specified current limit: 1.1 A

• Stable with cost-effective ceramic capacitors:– With 0-Ω ESR

• Temperature range: –40°C to +125°C

• Thermal shutdown and overcurrent protection

• For drop-in replacement with upgraded functionality, see the TLV761

Applications

• Set-top boxes

• TVs and monitors

• PC peripherals, notebooks, motherboards

• Modems and other communication products

• Switching power supply post-regulation

Description

The TLV1117LV low-dropout (LDO) linear regulator is a low input voltage version of the popular TLV1117 voltage regulator.

The TLV1117LV is an extremely low-power device that consumes 500 times lower quiescent current than traditional 1117 voltage regulators, making the device designed for applications that mandate very low standby current. The TLV1117LV LDO is also stable with 0 mA of load current; there is no minimum load requirement, making the device a good choice for applications where the regulator must power very small loads during standby in addition to large currents on the order of 1 A during normal operation. The TLV1117LV offers excellent line and load transient performance, resulting in very small magnitude undershoots and overshoots of output voltage when the load current requirement changes from less than 1 mA to more than 500 mA.

A precision band-gap and error amplifier provides 1.5% accuracy. A very high power-supply rejection ratio (PSRR) enables use of the device for post regulation after a switching regulator. Other valuable features include low output noise and low-dropout voltage.

The device is internally compensated to be stable with 0-Ω equivalent series resistance (ESR) capacitors. These key advantages enable the use of cost effective, small-size ceramic capacitors. Cost-effective capacitors that have higher bias voltages and temperature derating can also be used if desired.

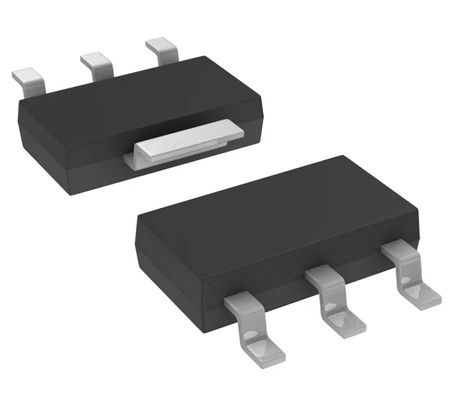

The TLV1117LV is available in a SOT-223 package.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
