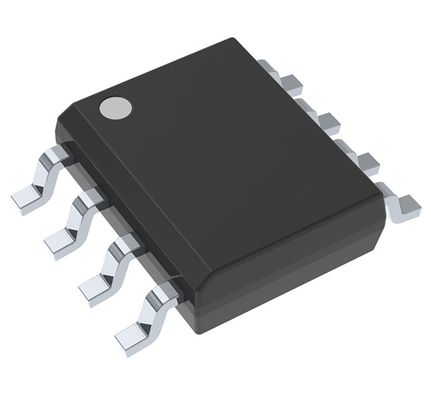

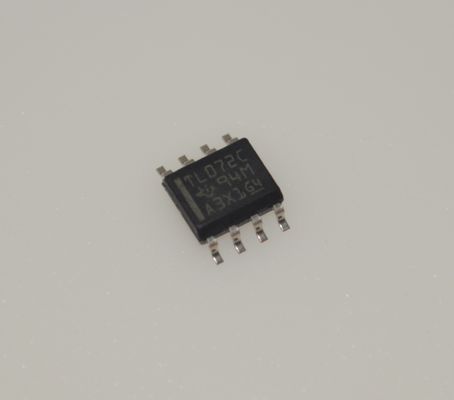

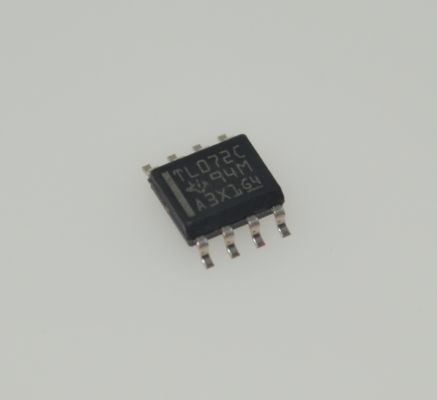

TL072CDR Low-Noise JFET-Input Op Amp with 3MHz Bandwidth 13V/µs Slew Rate ±18V Supply Low Input Bias High Input Impedance 0°C to 70°C Range and SOIC-8 Package for Audio and Precision Applications

TL072CDR Low-Noise JFET-Input Op Amp with 3MHz Bandwidth 13V/andmicro;s Slew Rate andplusmn;18V Supply Low Input Bias High Input Impedance 0anddeg;C to 70anddeg;C Range and SOIC-8 Package for Audio andamp; Precision Applications

andnbsp;

Features

andbull; High slew rate: 20V/andmu;s (TL07xH, typ)

andbull; Low offset voltage: 1mV (TL07xH, typ)

andbull; Low offset voltage drift: 2andmu;V/anddeg;C

andbull; Low power consumption: 940andmu;A/ch (TL07xH, typ)

andbull; Wide common-mode and differential voltage rangesandndash; Common-mode input voltage range includes VCC+

andbull; Low input bias and offset currents

andbull; Low noise:andndash; Vn = 37nV/andradic; Hz (typ) at f = 1kHz

andbull; Output short-circuit protection

andbull; Low total harmonic distortion: 0.003% (typ)

andbull; Wide supply voltage:andndash; andplusmn;2.25V to andplusmn;20V, 4.5V to 40V

andnbsp;

Applications

andbull; Solar energy: string and central inverter

andbull; Motor drives: ac and servo drive control and power-stage modules

andbull; Single-phase online UPS

andbull; Three-phase UPS

andbull; Pro audio mixers

andbull; Battery test equipment

andnbsp;

Description

The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1mV, typical), high slew rate (20V/andmu;s), and common-mode input to the positive supply.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
