SR510 Schottky Barrier Rectifier 5A 20V Low VF High Efficiency Ultra-Fast Switching Low Power Loss High Current Capability DO-201AD Package for SMPS and Polarity Protection

SR510 Schottky Barrier Rectifier 5A 20V Low VF High Efficiency Ultra-Fast Switching Low Power Loss High Current Capability DO-201AD Package for SMPS andamp; Polarity Protection

andnbsp;

FEATURES

● AEC-Q101 qualified available

● Low forward voltage drop

● Low power loss, high efficiency

● Guard ring for overvoltage protection

● High surge current capability

● RoHS Compliant

● Halogen-free according to IEC 61249-2-21

andnbsp;

APPLICATIONS

● Switching mode power supply (SMPS)

● Adapters

● DC to DC converter

andnbsp;

Description

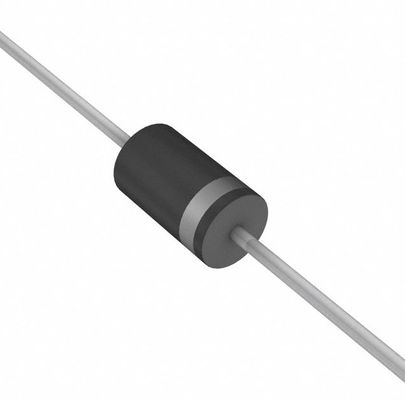

The SR510 is a widely used 5A, 20V Schottky barrier rectifier housed in a classic DO-201AD axial lead package. It operates on the Schottky barrier principle, which provides a significantly lower forward voltage drop (VF) and ultra-fast switching speed compared to conventional PN-junction rectifiers.

Its core advantages include:

1:High Efficiency and Low Power Loss: The low forward voltage drop results in reduced power dissipation and heat generation during conduction, improving overall circuit efficiency.

2:Ultra-Fast Recovery: As a majority-carrier device, it has virtually no reverse recovery time, making it ideal for switched-mode power supplies (SMPS), DC-DC converters, and freewheeling diode applications. This minimizes switching losses and suppresses voltage spikes.

3:High Current Capability: It can handle average forward currents of up to 5A, making it suitable for power applications.

andnbsp;
