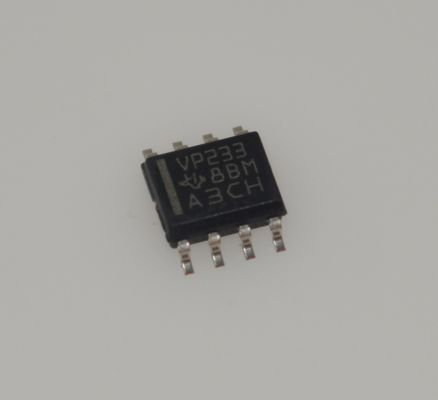

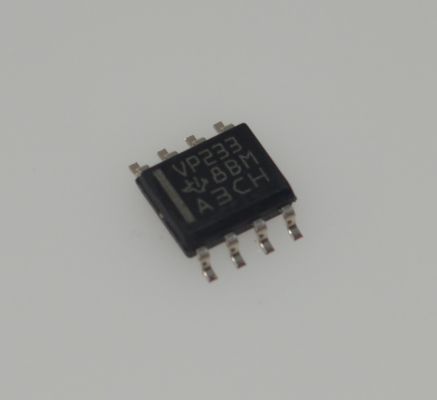

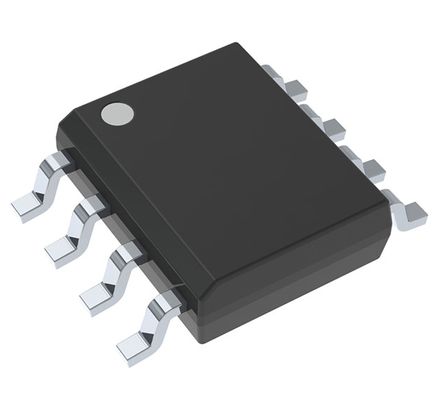

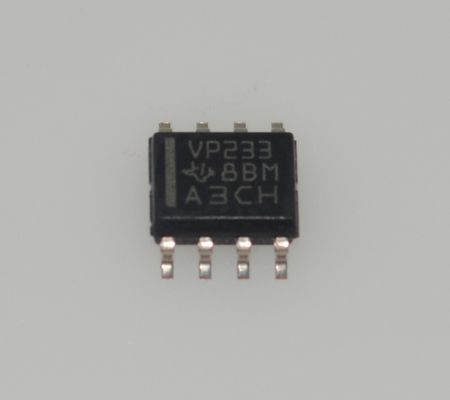

SN65HVD233DR 3.3V CAN FD Transceiver with 5Mbps Speed Low EMI Standby Mode Wide Temp Range Fault Tolerance High ESD Protection and AEC-Q100 Grade 1 Qualified

SN65HVD233DR 3.3V CAN FD Transceiver with 5Mbps Speed Low EMI Standby Mode Wide Temp Range Fault Tolerance High ESD Protection and AEC-Q100 Grade 1 Qualified

andnbsp;

Features

andbull; Single 3.3-V Supply Voltage

andbull; BusPins Fault Protection Exceeds andplusmn;36 V

andbull; BusPins ESD Protection Exceeds andplusmn;16 kV HBM

andbull; Compatible With ISO 11898-2

andbull; GIFT/ICT Compliant

andbull; Data Rates up to 1 Mbps

andbull; Extendedandndash;7 V to 12 V Common Mode Range

andbull; High-Input Impedance Allows for 120 Nodes

andbull; LVTTL I/Os are 5-V Tolerant

andbull; Adjustable Driver Transition Times for Improved Emissions Performance

andbull; Unpowered Node Does Not Disturb the Bus

andbull; LowCurrent Standby Mode, 200-andmu;A (Typical)

andbull; SN65HVD233: Loopback Mode

andbull; SN65HVD234: Ultra Low Current Sleep Modeandndash; 50-nA Typical Current Consumption

andbull; SN65HVD235: Autobaud Loopback Mode

andbull; Thermal Shutdown Protection

andbull; Power up and Down With Glitch-Free Bus Inputs and Outputs

andnbsp; andndash; High-Input Impedance With Low VCC

andnbsp; andndash; Monolithic Output During Power Cycling

andnbsp;

Applications

andbull; Industrial Automation, Control, Sensors, and Drive Systems

andbull; Motor and Robotic Control

andbull; Building and Climate Control (HVAC)

andbull; Backplane Communication and Control

andbull; CANBusStandards such as CANopen, DeviceNet, CAN Kingdom, NMEA 2000, SAE J1939

andnbsp;

Description

The SN65HVD233, SN65HVD234, and SN65HVD235 are used in applications employing the controller area network (CAN) serial communication physical layer in accordance with the ISO 11898 standard. As a CAN transceiver, each provides transmit and receive capability between the differential CAN bus and a CAN controller, with signaling rates up to 1 Mbps.

Designed for operation in especially harsh environments, the devices feature cross-wire protection, overvoltage protection up to andplusmn;36 V, loss of ground protection, overtemperature (thermal shutdown) protection, and common-mode transient protection of andplusmn;100 V. These devices operate over a wideandndash;7 V to 12 V common-mode range. These transceivers are the interface between the host CAN controller on the microprocessor and the differential CAN bus used in industrial, building automation, transportation, and automotive applications.
