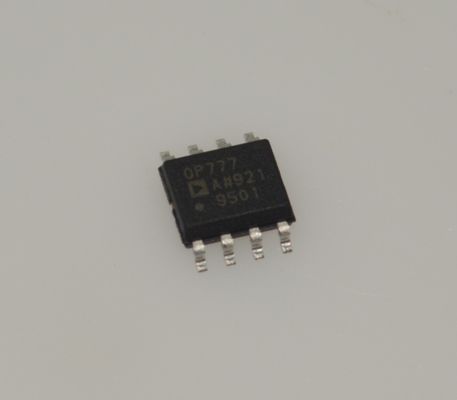

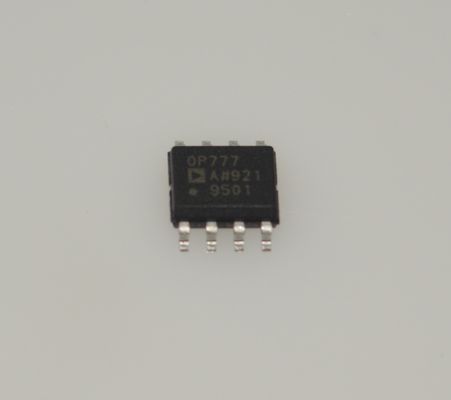

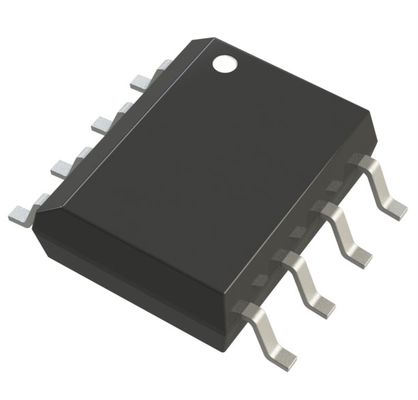

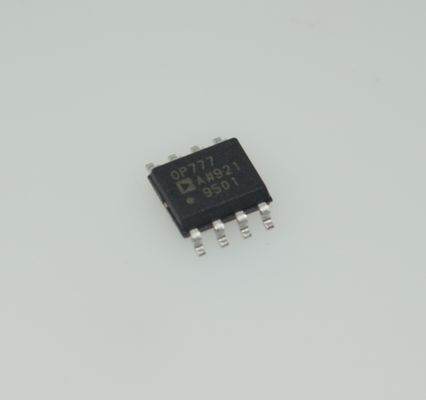

OP777ARZ Precision Micro-Power Op-Amp with Low Offset Low Noise Rail-to-Rail I/O Wide Supply Range and High CMRR for Battery-Powered Instruments & Sensor Interfaces

OP777ARZ Precision Micro-Power Op-Amp with Low Offset Low Noise Rail-to-Rail I/O Wide Supply Range and High CMRR for Battery-Powered Instruments & Sensor Interfaces

FEATURES

Low Offset Voltage: 100 V Max

Low Input Bias Current: 10nA Max

Single-Supply Operation: V to 30 V

Dual-Supply Operation: V to 15 V

Low Supply Current: 300 A/Amp Max

Unity Gain Stable

No Phase Reversal

APPLICATIONS

Current Sensing (Shunt)

Line or Battery-Powered Instrumentation

Remote Sensors

Precision Filters

OP727 SOIC Pin-Compatible with LT1013

DESCRIPTION

The OP777, OP727, and OP747 are precision single , dual, and quad rail-to-rail output single- supply amplifiers featuring micropower operation and rail-to-rail output ranges. These amplifiers provide improved performance over the industry-standard OP07 with ±15 V supplies, and offer the further advantage of true single-supply operation down to V , and smaller package options than any other high-voltage precision bipolar amplifier. Outputs are stable with capacitive loads of over 500 pF. Supply current is less than 300 μA per amplifier at 5 V. 500 Ω series resis tors protect the inputs, allowing input signal levels several volts above the positive supply without phase reversal.

Applications for these amplifiers include both line-powered and portable instrumentation, remote sensor signal conditioning, and precision filters.

The OP777, OP727, and OP747 are specified over the extended industrial (–40°C to +85°C) temperature range. The OP777, single, is available in 8-lead MSOP and 8-lead SOIC packages.

The OP747, quad, is available in 14-lead TSSOP and narrow 14-lead SO packages. Surface-mount devices in TSSOP and MSOP packages are available in tape and reel only.

The OP727, dual, is available in 8-lead TSSOP and 8-lead SOIC packages. The OP727 8-lead SOIC pin configuration differs from the standard 8-lead operational amplifier pinout.

INFORMATION

Drawing
