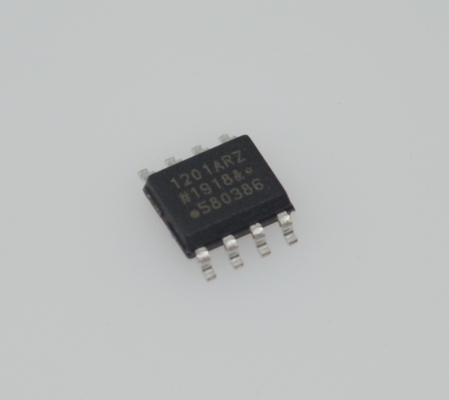

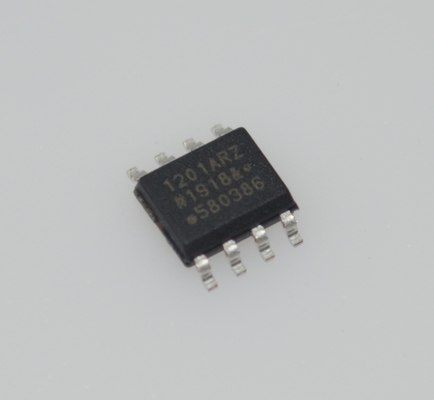

ADUM1201ARZ 2-Channel Digital Isolator with 2.5kV Isolation High-Speed 150Mbps Low Power Wide Temp (-40°C to +105°C) 15kV/μs CMTI 3V-5.5V Supply RoHS Compliant

ADUM1201ARZ 2-Channel Digital Isolator with 2.5kV Isolation High-Speed 150Mbps Low Power Wide Temp (-40°C to +105°C) 15kV/μs CMTI 3V-5.5V Supply RoHS Compliant

FEATURES

Narrow body, RoHS-compliant, SOIC 8-lead package Low power operation

  5 V operation

    1.1 mA per channel maximum at 0 Mbps to 2 Mbps

    3.7 mA per channel maximum at 10 Mbps

    8.2 mA per channel maximum at 25 Mbps

  3 V operation

    0.8 mA per channel maximum at 0 Mbps to 2 Mbps

    2.2 mA per channel maximum at 10 Mbps

    4.8 mA per channel maximum at 25 Mbps

Bidirectional communication

3 V/5 V level translation

High temperature operation: 125°C

High data rate: dc to 25 Mbps (NRZ)

Precise timing characteristics

  3 ns maximum pulse width distortion

  3 ns maximum channel-to-channel matching

High common-mode transient immunity: >25 kV/μs

Safety and regulatory approvals

  UL recognition

    2500 V rms for 1 minute per UL 1577

  CSA Component Acceptance Notice 5A

  VDE Certificate of Conformity

    DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12

    VIORM = 560 V peak

Qualified for automotive applications

APPLICATIONS

Size-critical multichannel isolation

SPI interface/data converter isolation

RS-232/RS-422/RS-485 transceiver isolation

Digital field bus isolation

Hybrid electric vehicles, battery monitor, and motor drive

GENERAL DESCRIPTION

The ADuM1200/ADuM12011 are dual-channel digital isolators based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic transformer technologies, these isolation components provide outstanding performance characteristics superior to alternatives, such as optocouplers.

By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with opto couplers.

The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with these iCoupler products. Furthermore, iCoupler devices consume one-tenth to one-sixth the power of optocouplers at comparable signal data rates.

The ADuM1200/ADuM1201 isolators provide two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). Both devices operate with the supply voltage on either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM1200/ADuM1201 provide low pulse width distortion (<3 ns for CR grade) and tight channel to-channel matching (<3 ns for CR grade). Unlike other optocoupler alternatives, the ADuM1200/ADuM1201 isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power up/power-down conditions.

The ADuM1200W and ADuM1201W are automotive grade versions qualified for 125°C operation. See the Automotive Products section for more information.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
