EN5311QI 5A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-20 -40°C to +125°C AEC-Q100

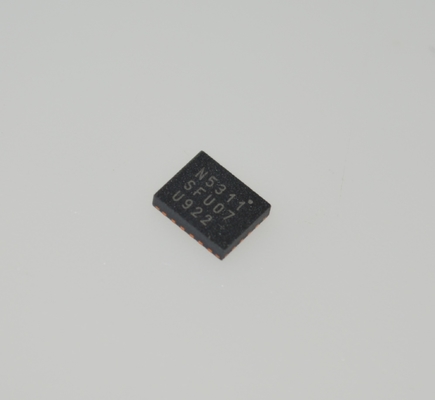

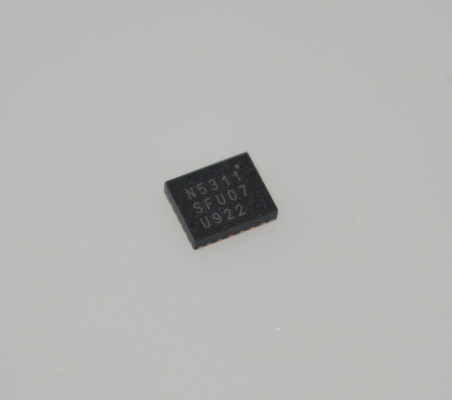

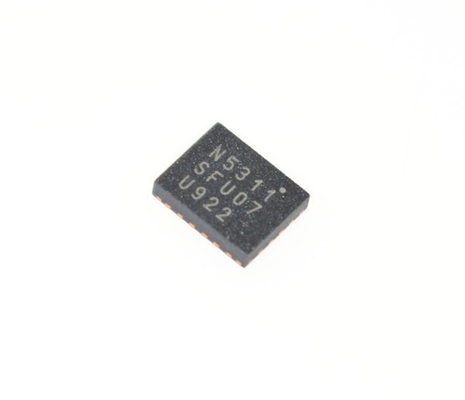

Büyük resim : EN5311QI 5A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-20 -40°C to +125°C AEC-Q100

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	Intel
Sertifika:	CE,ROHS
Model Number:	EN5311QI

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1pcs

İletişim

Detaylı ürün tanımı

Frequency Stability:	±50ppm	Frequency Tolerance:	±30ppm
Operating Temperature:	-40°C ~ 85°C	Load Capacitance:	18pF
Package / Case:	HC-49/US	Name:	Passive Electronic Components
Vurgulamak:	EN5311QI Synchronous Buck Converter , 5A Synchronous Buck Converter , QFN-20 Synchronous Buck Converter

EN5311QI 5A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-20 -40°C to +125°C AEC-Q100

FEATURES
Revolutionary Integrated inductor

5mm x 4mm x1.1mm QFN package

Very small total solution foot print

APPLICATIONS
Area constrained applications

Noise Sensitive Applications such as A/V and RF

LDO replacement for improved thermals

Set top box/home gateway

Smart phones, PDAs
VolP and Video phones

Personal Media Player

DESCRIPTION
The Ultra-Low-Profile EN5311Ql is targeted toapplications where board area and profile are critical.EN5311Ql is a complete power conversion solutionrequiring only two low cost ceramic MLCC caps.Inductor,MOSFETS,PWM,and compensation areintegrated into a tiny 5mmx4mm x1.1mm QFNpackage. The EN5311Ql is engineered to simplifydesign and to minimize layout constraints. 4 MHzswitching frequencyand internal typelcompensation provides superior transient response.With a 1.1 mm profile, the EN5311Ql is ideal for spaceand height constrained applications.

A 3-pin VD output voltage selector provides sevenpre-programmed output voltages along with anoption for external resistor divider. Output voltagecan be programmed on-the-fly to provide fast,dynamic voltage scaling.

INFORMATION

Category	Power Supplies - Board Mount DC DC Converters
Mfr	Altera
Series	Enpirion® 5300
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.4V
Voltage - Input (Max)	6.6V
Voltage - Output 1	0.6 ~ 6V
Voltage - Output 2	-
Voltage - Output 3	-
Current - Output (Max)	1A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C
Efficiency	94%
Mounting Type	Surface Mount
Package / Case	20-PowerTQFN Module
Size / Dimension	0.20" L x 0.16" W x 0.04" H (5.0mm x 4.0mm x 1.1mm)
Supplier Device Package	20-QFN (5x4)
Control Features	Enable, Active High
Base Product Number	EN5311

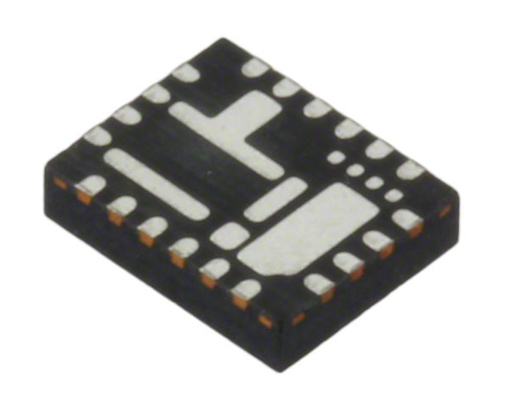

Drawing

EN5311QI 5A Synchronous Buck Converter 4.5-36V Input 95% Efficiency QFN-20 -40°C to +125°C AEC-Q100 1

----------------------------------------------------------

1. 10 years components experience; One-Stop service for BOM list; PCB&PCBA Service.

2. Produce Communication Antenna, RF Coaxial Cable, RF Connector,Terminals.

3. Distribute GSM/GPRS,GPS,3G,4G/LTE Module.

Our high quality products , competitive price and professional service,

be sure to meet your need for all kinds of components. ^_^
