PIC16F1508-I/SS 20MHz 8-bit MCU 7KB Flash 256B RAM 12-bit ADC SSOP-20 2-5.5V -40°C to +85°C

Çin TOP Electronic Industry Co., Ltd. Sertifikalar
Çin TOP Electronic Industry Co., Ltd. Sertifikalar
Mükemmel ürün, kaliteli, rekabetçi fiyat, profesyonel hizmet, 10 yıl işbirliği ile, şimdi birbirimize iyi arkadaş oluruz.

—— Ronald-Boilvia'dan

Çin'deki ortağımız olarak ÜST'ü bulmaktan mutluluk duyuyoruz, burada en iyi Ürünü ve hizmeti alabiliyoruz, müşteriyi her zaman ilk sırada tutuyorlar.

—— Arjantin'den Carlos

Tüm hizmetlerden çok memnunum. Bu gerçekten iyi bir takım! Tek durak çözüm önerilerinizle, zamandan ve paradan tasarruf etmemize yardımcı olun

—— İtalya'dan Giancarlo

Ben sohbet şimdi

PIC16F1508-I/SS 20MHz 8-bit MCU 7KB Flash 256B RAM 12-bit ADC SSOP-20 2-5.5V -40°C to +85°C

PIC16F1508-I/SS 20MHz 8-bit MCU 7KB Flash 256B RAM 12-bit ADC SSOP-20 2-5.5V -40°C to +85°C
PIC16F1508-I/SS 20MHz 8-bit MCU 7KB Flash 256B RAM 12-bit ADC SSOP-20 2-5.5V -40°C to +85°C PIC16F1508-I/SS 20MHz 8-bit MCU 7KB Flash 256B RAM 12-bit ADC SSOP-20 2-5.5V -40°C to +85°C PIC16F1508-I/SS 20MHz 8-bit MCU 7KB Flash 256B RAM 12-bit ADC SSOP-20 2-5.5V -40°C to +85°C

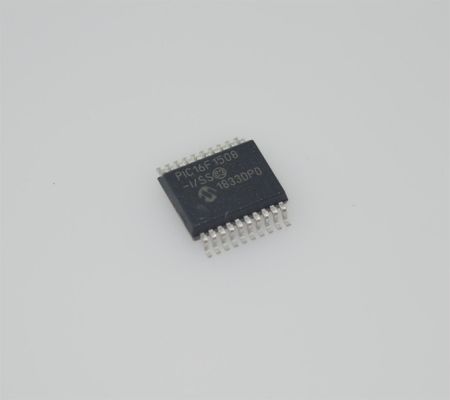

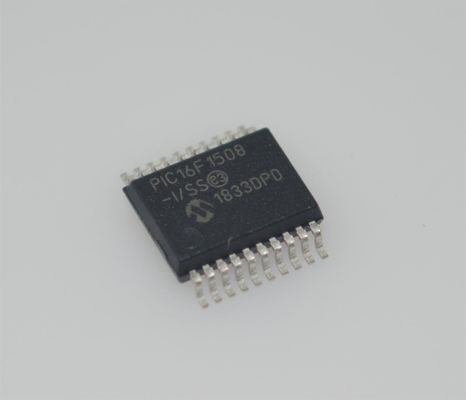

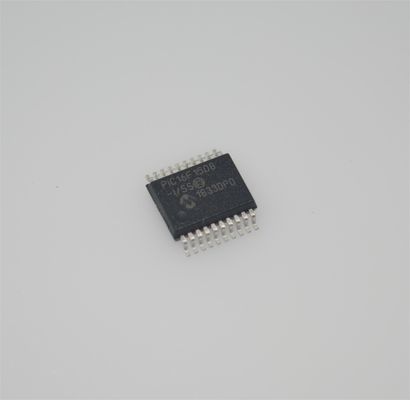

Büyük resim :  PIC16F1508-I/SS 20MHz 8-bit MCU 7KB Flash 256B RAM 12-bit ADC SSOP-20 2-5.5V -40°C to +85°C

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Microchip
Sertifika: CE, GCF, ROHS
Model numarası: PIC16F1508-I/SS
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: negotiable
Ambalaj bilgileri: Orijinal tepside, sonra karton, sonra dış paketleme için son balon çantasında paketlenmiş
Teslim süresi: Ödemeyi aldıktan sonra 3-5 iş günü
Ödeme koşulları: T/T, Batı Birliği,
Yetenek temini: ayda 1000 adet
Detaylı ürün tanımı
Görev: Adım Yukarı, Adım Aşağı Çıkış Yapılandırması: Olumlu veya olumsuz
topoloji: Buck, Yükseltme Çıktı Türü: Ayarlanabilir
Çıkış Sayısı: 1

PIC16F1508-I/SS 20MHz 8-bit MCU 7KB Flash 256B RAM 12-bit ADC SSOP-20 2-5.5V -40°C to +85°C



Special Microcontroller Features:

• Operating Voltage Range:

- 1.8V to 3.6V (PIC16LF1508/9)

- 2.3V to 5.5V (PIC16F1508/9)

• Self-Programmable under Software Control

• Power-on Reset (POR)

• Power-up Timer (PWRT)

• Programmable Low-Power Brown-out Reset (LPBOR)

• Extended Watchdog Timer (WDT):

- Programmable period from 1 ms to 256s

• Programmable Code Protection

• In-Circuit Serial Programming™ (ICSP™) via Two Pins

• Enhanced Low-Voltage Programming (LVP)

• In-Circuit Debug (ICD) via Two Pins

• Power-Saving Sleep mode:

- Low-Power Sleep mode

- Low-Power BOR (LPBOR)

• Integrated Temperature Indicator

• 128 Bytes High-Endurance Flash

- 100,000 write Flash endurance (minimum)



Peripheral Features:

• Analog-to-Digital Converter (ADC):

- 10-bit resolution

- 12 external channels

- Three internal channels:

  - Fixed Voltage Reference

  - Digital-to-Analog Converter (DAC)

  - Temperature Indicator channel

- Auto acquisition capability

- Conversion available during Sleep

• 5-Bit Digital-to-Analog Converter (DAC):

- Output available externally

- Positive reference selection

- Internal connections to comparators and ADC

• Two Comparators:

- Rail-to-rail inputs

- Power mode control

- Software controllable hysteresis

• Voltage Reference:

- 1.024V Fixed Voltage Reference (FVR) with 1x, 2x and 4x Gain output levels

• 18 I/O Pins (1 Input-only Pin):

- High current sink/source 25 mA/25 mA

- Individually programmable weak pull-ups

- Individually programmable

  Interrupt-on-Change (IOC) pins

• Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler

• Enhanced Timer1:

- 16-bit timer/counter with prescaler

- External Gate Input mode

• Timer2: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler

• Four 10-bit PWM modules

• Master Synchronous Serial Port (MSSP) with SPI and I2C with:

- 7-bit address masking

- SMBus/PMBus™ compatibility

• Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)

- RS-232, RS-485 and LIN compatible

- Auto-Baud Detect

- Auto-wake-up on Start

• Four Configurable Logic Cell (CLC) modules:

- 16 selectable input source signals

- Four inputs per module

- Software control of combinational/sequential logic/state/clock functions

- AND/OR/XOR/D Flop/D Latch/SR/JK

- Inputs from external and internal sources

- Output available to pins and peripherals

- Operation while in Sleep

• Numerically Controlled Oscillator (NCO):

- 20-bit accumulator

- 16-bit increment

- True linear frequency control

- High-speed clock input

- Selectable Output modes

  - Fixed Duty Cycle (FDC) mode

  - Pulse Frequency (PF) mode

• Complementary Waveform Generator (CWG):

- Eight selectable signal sources

- Selectable falling and rising edge dead-band control

- Polarity control

- Four auto-shutdown sources

- Multiple input sources: PWM, CLC, NCO



INFORMATION

Category
Mfr
Series
Packaging
Tube
Part Status
Active
DigiKey Programmable
Verified
Core Processor
PIC
Core Size
8-Bit
Speed
20MHz
Connectivity
I2C, LINbus, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O
17
Program Memory Size
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
256 x 8
Voltage - Supply (Vcc/Vdd)
2.3V ~ 5.5V
Data Converters
A/D 12x10b; D/A 1x5b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
20-SSOP
Package / Case
20-SSOP (0.209", 5.30mm Width)
Base Product Number



Drawing

PIC16F1508-I/SS 20MHz 8-bit MCU 7KB Flash 256B RAM 12-bit ADC SSOP-20 2-5.5V -40°C to +85°C 0
