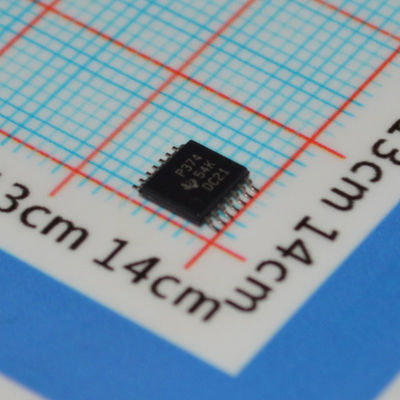

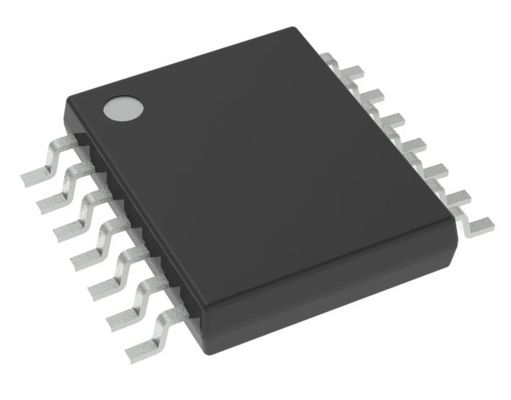

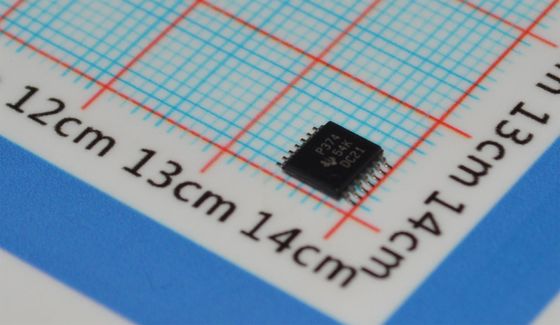

TLC374CPWR Quad CMOS Comparator 2μs Response 2.7-16V Supply 1mV Offset Push-Pull Output TSSOP-14 -40°C to +125°C Industrial-Grade

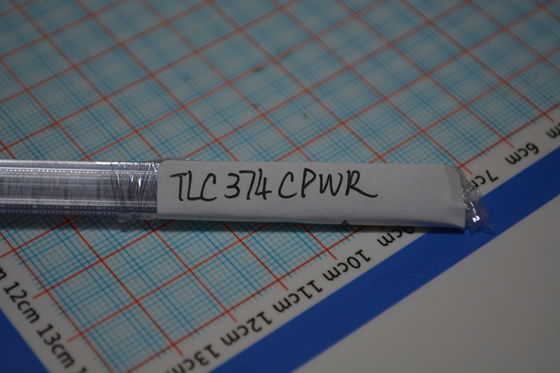

TLC374CPWR

Features

Single- or Dual-Supply Operation

Wide Range of Supply Voltages 2 V to 18 V

Very Low Supply Current Drain 0.3 mA Typ at 5 V

Fast Response Time . . . 200 ns Typ for TTL-Level Input Step

Built-In ESD Protection

High Input Impedance . . . 1012 Ω Typ

Extremely Low Input Bias Current 5 pA Typ

Ultrastable Low Input Offset Voltage

Input Offset Voltage Change at Worst-Case

  Input Conditions Typically 0.23 µV/Month,

  Including the First 30 Days

Common-Mode Input Voltage Range Includes Ground

Outputs Compatible With TTL, MOS, and CMOS

Pin-Compatible With LM339

description

These quadruple differential comparators are fabricated using LinCMOS technology and consist of four independent voltage comparators designed to operate from a single power supply. Operation from dual supplies is also possible if the difference between the two supplies is 2 V to 18 V. Each device features extremely high input impedance (typically greater than 1012 Ω), allowing direct interfacing with high-impedance sources. The outputs are n-channel open-drain configurations and can be connected to achieve positive-logic wired-AND relationships.

The TLC374 has internal electrostatic discharge (ESD) protection circuits and has been classified with a 1000-V ESD rating using human body model testing. However, care should be exercised in handling this device as exposure to ESD may result in degradation of the device parametric performance. The TLC374C is characterized for operation from 0°C to 70°C. The TLC374I is characterized for operation from–40° to 85°C. The TLC374M is characterized for operation over full military temperature range of–55°C to 125°C. The TLC374Q is characterized for operation from –40°C to 125°C.
