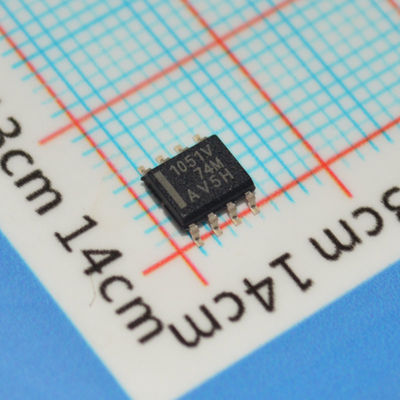

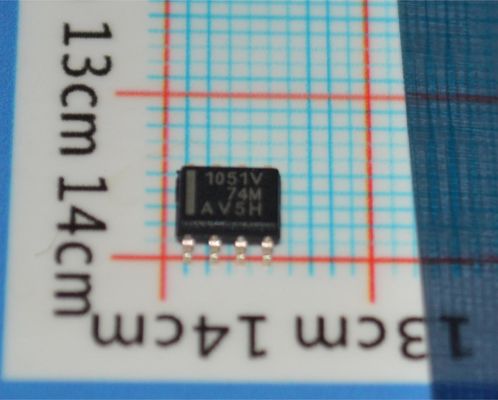

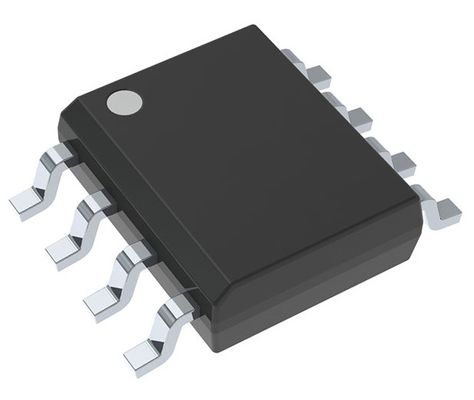

TCAN1051VDQ1 5V CAN FD Transceiver 5Mbps Flexible Data Rate ±58V Fault Protection 1.8V-5V Logic I/O SOIC-8 -40°C to +125°C AEC-Q100 Grade 1

TCAN1051VDQ1

Features

• AEC Q100: Qualified for automotive applications– Temperature grade 1: -40°C to 125°C, TA– HBM classification level: ±16 kV– CDM classification level ±1500 V

• Meets the ISO 11898-2:2016 and ISO 11898-5:2007 physical layer standards

• Functional Safety-Capable– Documentation available to aid functional safety system design

• 'Turbo' CAN:– All devices support classic CAN and 2 Mbps CAN FD (flexible data rate) and "G" options support 5 Mbps– Short and symmetrical propagation delay times and fast loop times for enhanced timing margin– Higher data rates in loaded CAN networks

• EMC performance: supports SAE J2962-2 and IEC 62228-3 (up to 500 kbps) without common mode choke

• I/O Voltage range supports 3.3 V and 5 V MCUs

• Ideal passive behavior when unpowered– Bus and logic terminals are high impedance (no load)– Power up/down with glitch free operation on bus and RXD output

• Protection features– IEC ESD protection up to ±15 kV– Bus Fault protection: ±58 V (non-H variants) and ±70 V (H variants)– Undervoltage protection on VCC and VIO (V variants only) supply terminals– Driver dominant time out (TXD DTO) - Data rates down to 10 kbps– Thermal shutdown protection (TSD)

• Receiver common mode input voltage: ±30 V

• Typical loop delay: 110 ns

• Junction temperatures from –55°C to 150°C

• Available in SOIC(8) package and leadless VSON(8) Package (3.0 mm x 3.0 mm) with improved automated optical inspection (AOI) capability

Applications

• Automotive and Transportation

• All devices support highly loaded CAN networks

• Heavy machinery ISOBUS applications ISO 11783

Description

This CAN transceiver family meets the ISO11898-2 (2016) High Speed CAN (Controller Area Network) physical layer standard. All devices are designed for use in CAN FD networks up to 2 Mbps (megabits per second). Devices with part numbers that include the "G" suffix are designed for data rates up to 5 Mbps, and versions with the "V" have a secondary power supply input for I/O level shifting the input pin thresholds and RXD output level. This family of devices comes with silent mode which is also commonly referred to as listen-only mode. Additionally, all devices include many protection features to enhance device and network robustness.

Information

Drawing
